Wood Processing Industry

The wood processing equipment/autoclave structure design is reasonable, the function is advanced, the appearance is beautiful, the applicability is strong, the wood processing quantity is big, the use is wide, the efficiency is high, the production cost is low. The series of wood preservation decreasing equipment unit is suitable for bamboo and wood products, anti-corrosion, mildew, moth, anti termite, flame retardant staining of special equipment. At the same time, it can be used in all kinds of anti - corrosion, flame retardant, dyeing, etc.

Wood Processing Industry


Types and Specifications of Equipment Suitable for Wood Processing Industry

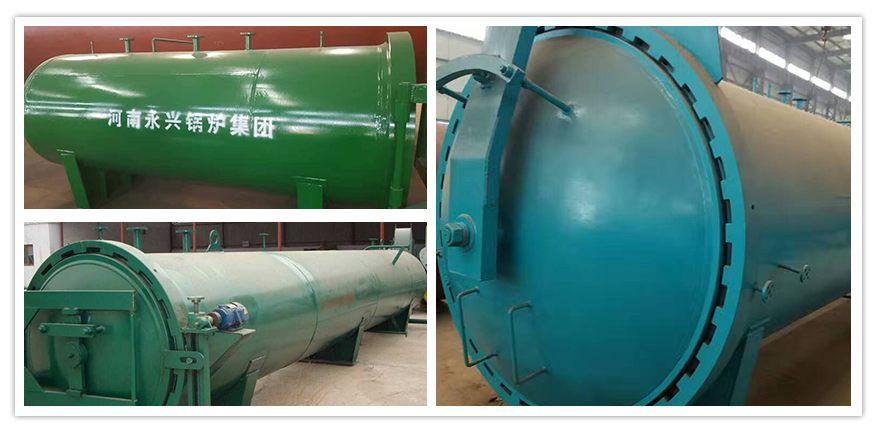

Wood Treatment Equipment
Wood Treatment Equipment

Length: 6-20m. (Can be customized)

Width: 1-2m. (Can be customized)

Design Temperature :187-225°C

Length: 6-20m. (Can be customized)

Width: 1-2m. (Can be customized)

Design Temperature :187-225°C

DZL Single Drum Automatically Boiler
DZL Single Drum Automatically Boiler

Capacity:0.5t/h-20t/h  0.35mw/h - 14mw/h

Pressure:0.7Mpa-2.5Mpa

Fuel:Coal, Biomass pellet, Rice Husk, Bagasse, etc.

DZL type boiler is horizontal three return water fire tube boiler. In the left and right sides of the furnace is arranged into rows of water wall tube, inside the drum are arranged two bundles constitute two return. This type of boiler adequate heating surface and are equipped with plate and tail heating surface economizer in.

WNS Single Drum Smoke Tube Boiler
WNS Single Drum Smoke Tube Boiler

Capacity: 0.5t/h-20t/h   0.35mw/h - 14mw/h

Pressure: 0.7Mpa-1.6Mpa

Fuel: Natural gas, lpg, Light Oil, Diesel, Heavy oil,dual fuels.

WNS series gas/oil steam boiler smoke gas three pass and wet back structure, achieve high thermal efficiency (98%) . This is fire tube boiler, low water quality requirement, the failure rate is lower than 0.1. Adopts international excellent burner, PLC automatic control cabinet, and safety interlock device, operate safely and conveniently.

How to Select a Proper Boiler for Wood processing industry

1. Determine the capacity of the boiler. The boiler capacity should based on the Heating Load Curve or Heat Balance Diagram, and includes the heat loss in pipelines, self-used heat of boiler room, available used waste heat. While, usually, it is difficult to get the Heating Load Curve, the heating load could get based on the max thermal consumption per hour within production/heating/domestic, and then determine by using the coefficient.

2. Determine the boiler heating parameters, including pressure, temperature, etc.

3. Determine the boiler efficiency. In order to benefit for economic management, the boilers should have high thermal efficiency, and the boiler output, quantity and other performances have to adapt to the change of heat loading.

4. It is better to select the boilers with same capacity or combustion equipment. If different, the max limitation is two models, to decrease the problems of equipment layout and management.
