AAC Production Line

In a complete AAC production line, steam boiler and autoclave are the main equipment to provide high pressure high temperature steam and blocks steam curing. Yongxing Boiler Group is a leading manufacturer in boiler and autoclave designing, manufacturing, installing, maintenance.

AAC Production Line

The AAC Plant is designed to manufacture aerated concrete blocks used as building material. The plant is able to make extreme light weight and large variety of sizes blocks and has excellent thermal insulation nature.

AAC Production Line

AAC Plants of Different Production Capacity:

AAC block plant in Annual Capacity of 300,000m3

AAC block plant in Annual Capacity of 250,000m3

AAC block plant in Annual Capacity of 200,000m3

AAC block plant in Annual Capacity of 150,000m3

AAC block plant in Annual Capacity of 100,000m3

AAC block plant in Annual Capacity of 50,000m3

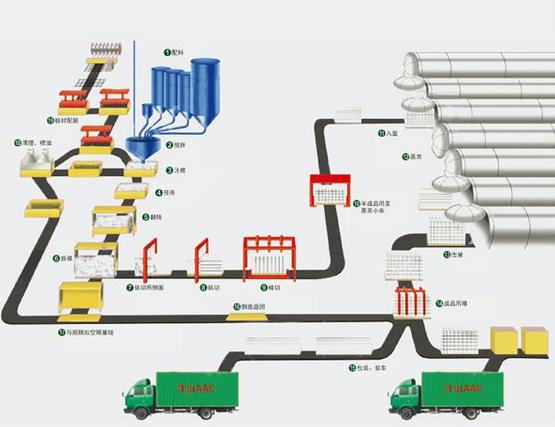

Equipment in AAC Block Production Line:

A full AAC block production line includes belt conveyor, batching machine, roller screen, grinding head silo, wet ball mill, jaw crusher, dust catcher, bucker elevator, silo for coarse lime, dry ball mill, silo for fine lime, cement silo, screw conveyor, slurry storage tank, weighing hopper for slurry, weighing hopper for lime and cement, ferry cart, turning crane, vertical cutting machine, horizontal cutting machine, turning & grouping crane, curing cart, AUTOCLAVE, finished product crane, block clamping machine, winch for side plate return.

AAC Production Line

RAW Materials for AAC Plant

FLY ASH: One of the raw materials widely used in the manufacturing of AAC bricks is FLY ASH, around 70% fly ash is required as raw material. It is easily available in the Thermal Power plants and no amount of tax is charged on this item. Though transportation charges are to be payed by the entrepreneur.

Lime: One of the other required raw material is Active Powered Lime. Various quality of raw material are used in its manufacturing. A total of 15% lime is required.

OPC 53 Grade Cement: The most important raw material is OPC cement which is used as a binder. It provides strength to the bricks and improves its quality. Its important attributes are better cost effectiveness and easy availability globally, through retail network of cement companies. There is a requirement of 10% of OPC cement.

Gypsum: Gypsum is an industrial waste used to give lasting strength to the blocks. It is a byproduct of fertilizers. And around 4% gypsum is required.

Aluminum Powder: Aluminum Powder is required at a very limited quantity (less than 0.5%).It reacts with lime and silica swells the product and makes it light weighted.

AAC Production Line

AAC Plant Advantage

Quality: Advanced technology, customized solutions and lasting equipment

Safety: all safety measures are taken

Turn-key Projects: Excellent plant concepts from one single source.

Service: Timely and technical service are supported to our customers

Types and Specifications of Equipment Suitable for AAC Production Line
DZL Single Drum Automatically Boiler
DZL Single Drum Automatically Boiler

Capacity:0.5t/h-20t/h  0.35mw/h - 14mw/h


Fuel:Coal, Biomass pellet, Rice Husk, Bagasse, etc.

DZL type boiler is horizontal three return water fire tube boiler. In the left and right sides of the furnace is arranged into rows of water wall tube, inside the drum are arranged two bundles constitute two return. This type of boiler adequate heating surface and are equipped with plate and tail heating surface economizer in.


Length: 8-50m. (Can be customized)

Width: 1.5-3m. (Can be customized)

Design Temperature :187-225°C

Autoclave uses: the kettle is steam curing of a large pressure vessel of aerated concrete block, sand, fly ash, and so on pressing bearing brick or standard bricks, in the kettle complete CaO-SiO2-H2O hydrothermal reaction. At the same time, it is also widely used in other production projects, which need to be used in the production process. Such as high - strength gypsum, heat preservation material, rubber products, high - strength glass, cement pipe pile, cement pipe and wood, medicine, chemical and other industries.

WNS Single Drum Smoke Tube Boiler
WNS Single Drum Smoke Tube Boiler

Capacity: 0.5t/h-20t/h   0.35mw/h - 14mw/h

Pressure: 0.7Mpa-1.6Mpa

Fuel: Natural gas, lpg, Light Oil, Diesel, Heavy oil,dual fuels.

WNS series gas/oil steam boiler smoke gas three pass and wet back structure, achieve high thermal efficiency (98%) . This is fire tube boiler, low water quality requirement, the failure rate is lower than 0.1. Adopts international excellent burner, PLC automatic control cabinet, and safety interlock device, operate safely and conveniently.

How to Select a Proper Boiler for AAC production line

1. Determine the capacity of the boiler. The boiler capacity should based on the Heating Load Curve or Heat Balance Diagram, and includes the heat loss in pipelines, self-used heat of boiler room, available used waste heat. While, usually, it is difficult to get the Heating Load Curve, the heating load could get based on the max thermal consumption per hour within production/heating/domestic, and then determine by using the coefficient.

2. Determine the boiler heating parameters, including pressure, temperature, etc.

3. Determine the boiler efficiency. In order to benefit for economic management, the boilers should have high thermal efficiency, and the boiler output, quantity and other performances have to adapt to the change of heat loading.

4. It is better to select the boilers with same capacity or combustion equipment. If different, the max limitation is two models, to decrease the problems of equipment layout and management.
